Files
file	Primitives.h
	Omnibus header including all of the geometric primitives.

Functions
MeshData	candlewick::loadArrowSolid (bool include_normals=false, float shaft_length=0.4f, float shaft_radius=0.01f, float head_length=0.1f, float head_radius=0.02f, Uint32 segments=32)
	Load a solid 3D arrow.

std::array< MeshData, 3 >	candlewick::loadTriadSolid (float shaft_length=0.4f, float shaft_radius=0.01f, float head_length=0.1f, float head_radius=0.02f, Uint32 segments=32)
	Create a 3D triad.

MeshData	candlewick::loadCapsuleSolid (Uint32 hemisphereRings, Uint32 segments, float length)
	Load a capsule primitive.

MeshData	candlewick::loadConeSolid (Uint32 segments, float radius, float length)
	Load a 3D solid cone.

MeshDataView	candlewick::loadCubeSolid ()
	Load MeshDataView for a cube.

MeshData	candlewick::loadCylinderSolid (Uint32 rings, Uint32 segments, float radius, float height)
	Load a solid 3D cylinder.

MeshData	candlewick::loadGrid (Uint32 xyHalfSize, float scale=0.5f)
	Load a line grid.

MeshData	candlewick::loadHeightfield (const Eigen::Ref< const Eigen::MatrixXf > &heights, const Eigen::Ref< const Eigen::VectorXf > &xgrid, const Eigen::Ref< const Eigen::VectorXf > &ygrid)
	Load a heightfield, as line geometry.

MeshDataView	candlewick::loadPlane ()

MeshData	candlewick::loadPlaneTiled (float scale, Uint32 xrepeat, Uint32 yrepeat, bool centered=true)

MeshData	candlewick::loadUvSphereSolid (Uint32 rings, Uint32 segments)
	Load a sphere primitive organized in bottom-up rings and left-right segments.

Detailed Description

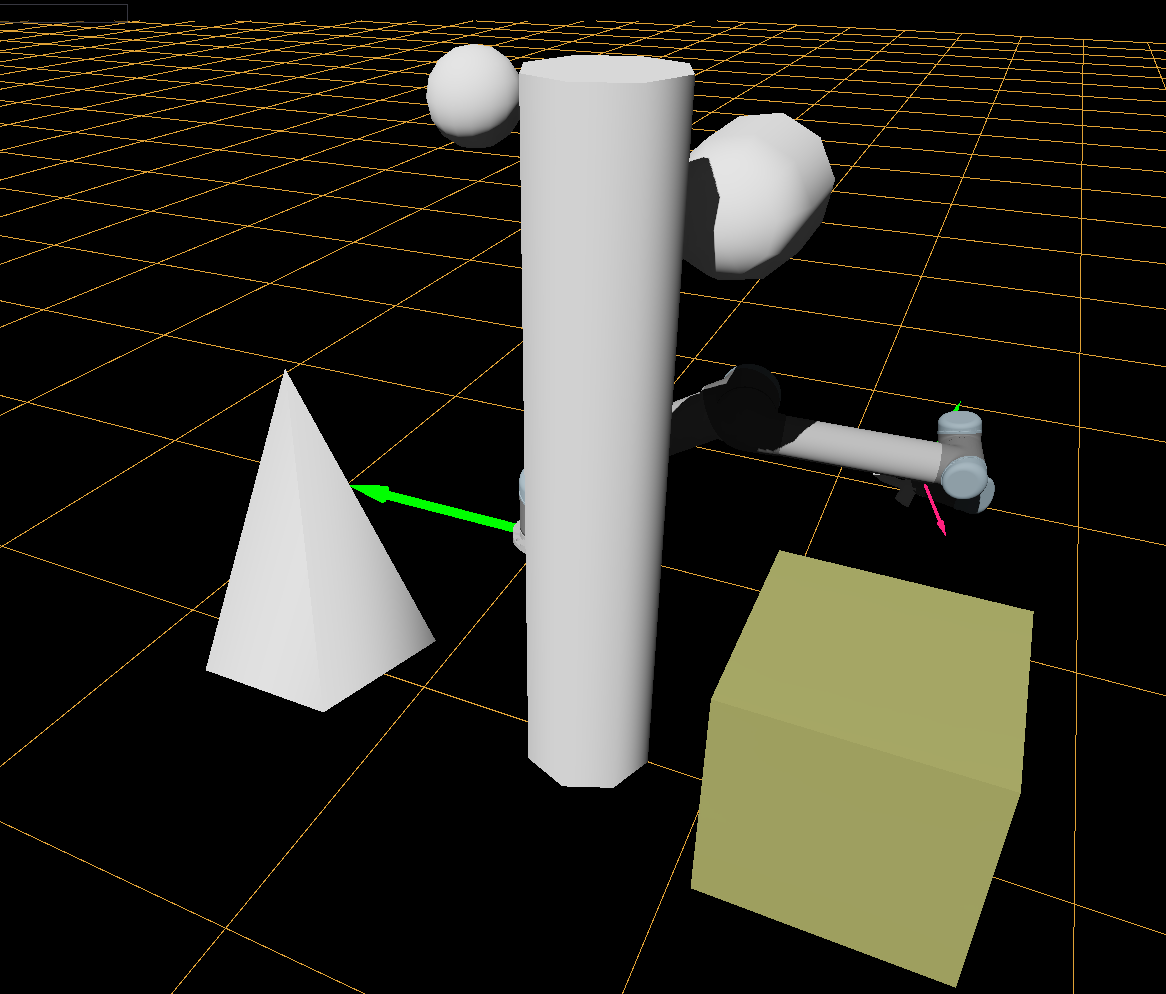

A scene containing some geometric primitives (cone, cylinder, capsule, box, and some arrows).

Function Documentation

◆ loadArrowSolid()

MeshData candlewick::loadArrowSolid	(	bool	include_normals = false,
		float	shaft_length = 0.4f,
		float	shaft_radius = 0.01f,
		float	head_length = 0.1f,
		float	head_radius = 0.02f,
		Uint32	segments = 32 )

Load a solid 3D arrow.

◆ loadCapsuleSolid()

MeshData candlewick::loadCapsuleSolid	(	Uint32	hemisphereRings,
		Uint32	segments,
		float	length )

Load a capsule primitive.

This will have unit radius. You can apply a scaling transform to change the radius to what you want. See apply3DTransformInPlace().

◆ loadConeSolid()

MeshData candlewick::loadConeSolid	(	Uint32	segments,
		float	radius,
		float	length )

Load a 3D solid cone.

◆ loadCubeSolid()

MeshDataView candlewick::loadCubeSolid ( )

Load MeshDataView for a cube.

◆ loadCylinderSolid()

MeshData candlewick::loadCylinderSolid	(	Uint32	rings,
		Uint32	segments,
		float	radius,
		float	height )

Load a solid 3D cylinder.

◆ loadGrid()

MeshData candlewick::loadGrid	(	Uint32	xyHalfSize,
		float	scale = 0.5f )

Load a line grid.

◆ loadHeightfield()

MeshData candlewick::loadHeightfield	(	const Eigen::Ref< const Eigen::MatrixXf > &	heights,
		const Eigen::Ref< const Eigen::VectorXf > &	xgrid,
		const Eigen::Ref< const Eigen::VectorXf > &	ygrid )

Load a heightfield, as line geometry.

◆ loadPlane()

MeshDataView candlewick::loadPlane ( )

◆ loadPlaneTiled()

MeshData candlewick::loadPlaneTiled	(	float	scale,
		Uint32	xrepeat,
		Uint32	yrepeat,
		bool	centered = true )

◆ loadTriadSolid()

std::array< MeshData, 3 > candlewick::loadTriadSolid	(	float	shaft_length = 0.4f,
		float	shaft_radius = 0.01f,
		float	head_length = 0.1f,
		float	head_radius = 0.02f,
		Uint32	segments = 32 )

Create a 3D triad.

◆ loadUvSphereSolid()

MeshData candlewick::loadUvSphereSolid	(	Uint32	rings,
		Uint32	segments )

Load a sphere primitive organized in bottom-up rings and left-right segments.
