Candlewick: a modern, cross-platform real-time renderer for robotics based on SDL3

Warning

Candlewick is still under active development. Support will be limited, and the API might break unexpectedly and repeatedly.

Candlewick is a cross-platform framework for real-time visualization in robotics, based on SDL3's graphics API.

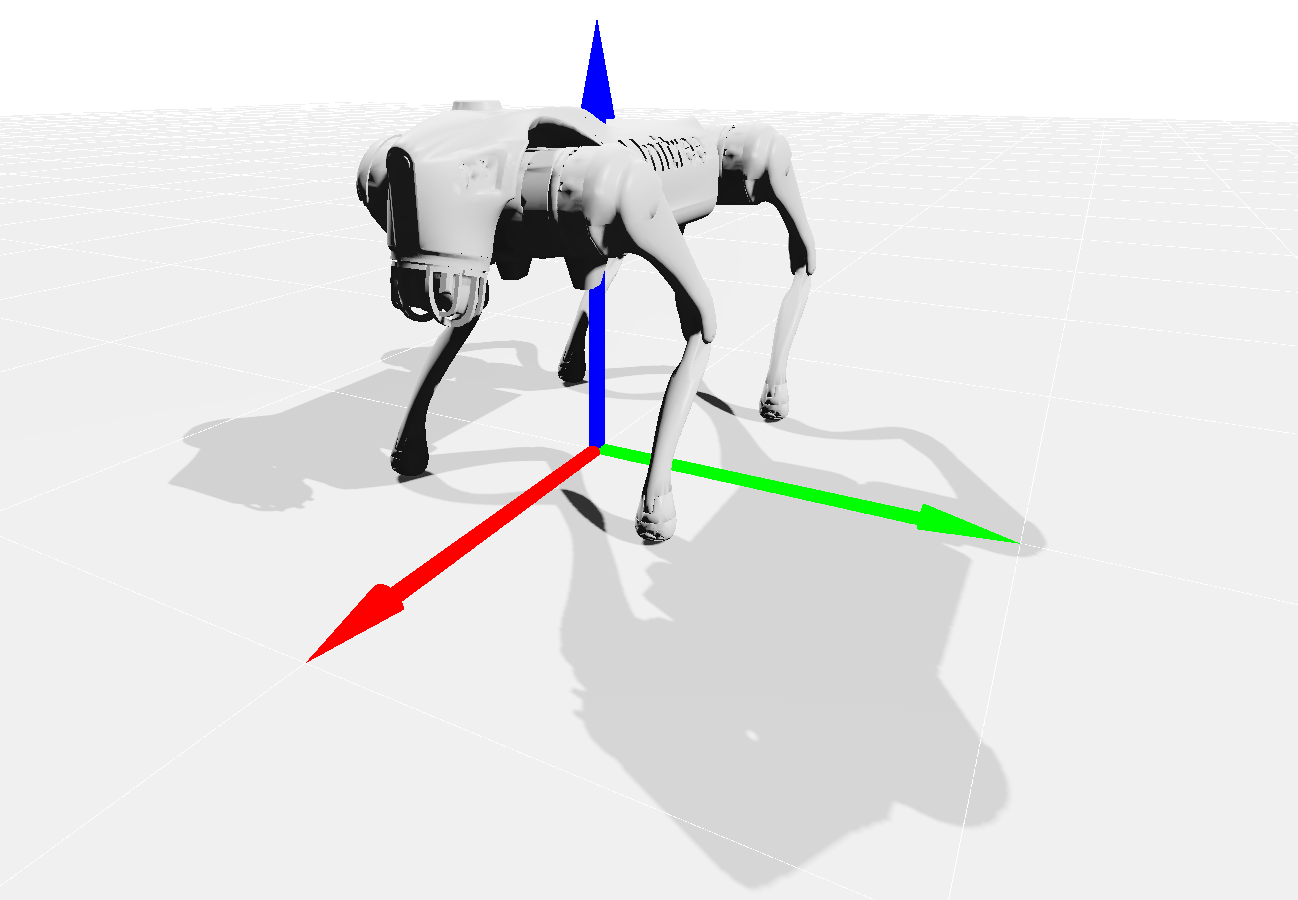

go2 standing

Features

Graphical features

• Shadow mapping using directional shadow maps
• Screen-space ambient occlusion (SSAO)
• WIP: Screen-space shadows (SSS)

Interactivitity

• Integration with ImGui
• Take screenshots of the main window
• (optional) Record videos from the main window using FFmpeg

Pinocchio visualizer

Candlewick visualization utilities for robotics based on Pinocchio.

You can load a Pinocchio model, its geometry model, and create a visualizer that can be used similar to the other visualizers included in pinocchio.visualize. Here's a Python example:

import example_robot_data as erd
import pinocchio as pin
from candlewick import Visualizer, VisualizerConfig, create_recorder_context

robot = erd.load("ur10")
model: pin.Model = robot.model
visual_model: pin.GeometryModel = robot.visual_model

config = VisualizerConfig()
config.width = 1280
config.height = 720
viz = Visualizer(config, model, visual_model)

q0 = pin.neutral(model)
viz.addFrameViz(model.getFrameId("tool0"))

with create_recorder_context(viz, "ur10_video.mp4"):
  while not viz.shouldExit:
    viz.display(q0)

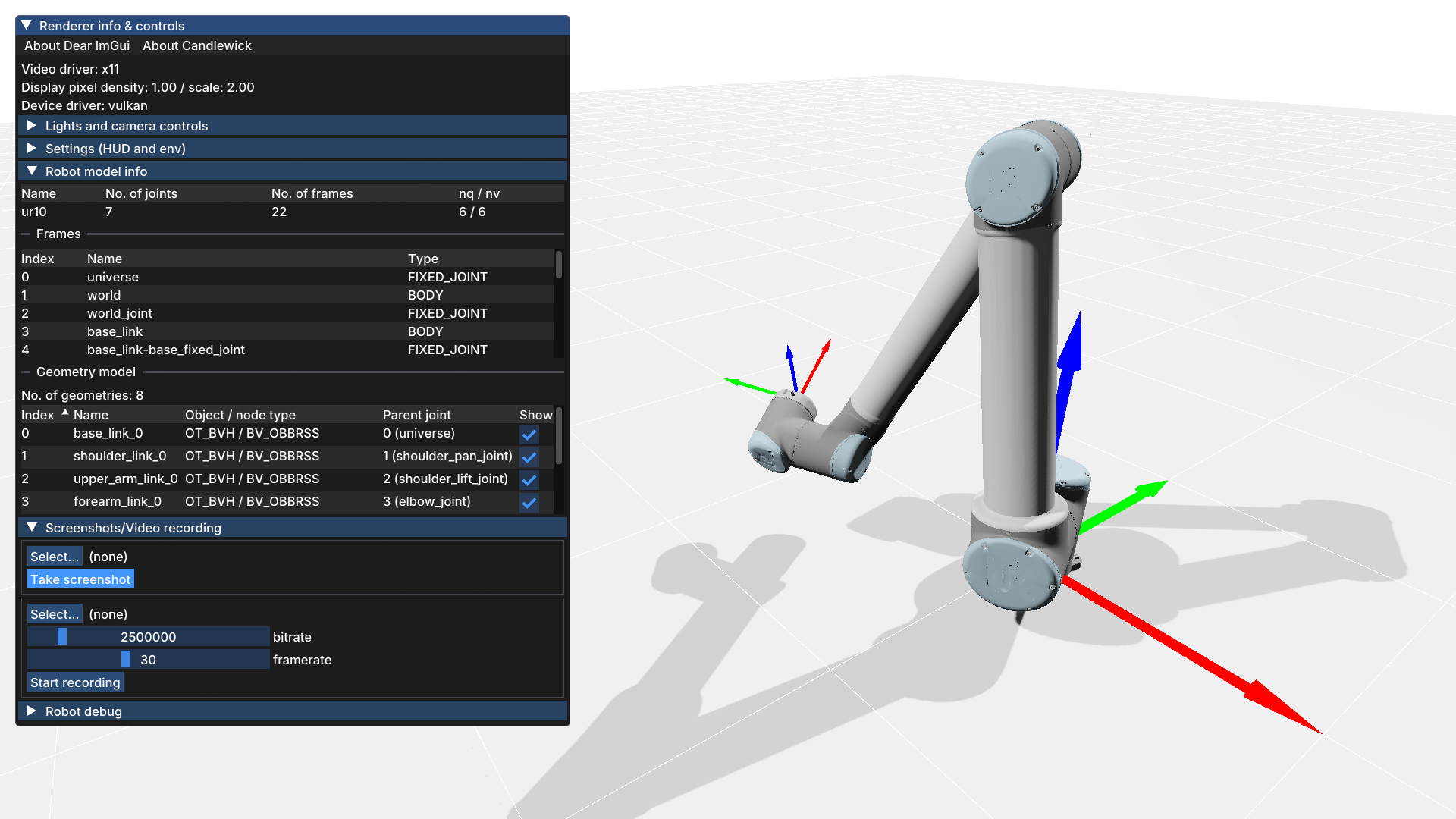

ur10

Candlewick visualizer runtime and client

The runtime allows users to persist a visualizer window and keep interacting with it asynchronously, even when display commands are not being submitted.

To build the runtime, users must set the BUILD_VISUALIZER_RUNTIME CMake option.

Launch the candlewick runtime:

candlewick-visualizer # --help

The corresponding asynchronous visualizer client is used as follows:

from candlewick.async_visualizer import AsyncVisualizer

viz = AsyncVisualizer(model, geom_model)
viz.initViewer(hostname="127.0.0.1", port=12000)
viz.loadViewerModel()
# use as any other Pinocchio visualizer class

Check out the corresponding example.

Dependencies

Core dependencies

Candlewick depends mainly on:

• SDL3 - Graphics backend, windowing, user input
• Assimp - Loading meshes and importing 3D assets
• EnTT - Implementing the Entity-Component System
• nlohmann_json - JSON parsing (used internally for shader reflection)
• Eigen - Linear algebra
• Coal - Collision detection, geometry primitives
• magic_enum - Enum reflection utilities

These dependencies can be installed from Conda as follows:

conda install -c conda-forge sdl3 eigen coal magic_enum assimp entt nlohmann_json

Additionally, candlewick depends on the following bundled dependencies:

• ImGui - immediate-mode GUI

Optional dependencies

Python bindings

• eigenpy for Python bindings.

Python runtime dependencies: numpy

Pinocchio support

Required for the candlewick::multibody classes and functions:

• Pinocchio, must be built with collision support. conda install -c conda-forge pinocchio

Python runtime dependencies: pinocchio (Python bindings)

Additional dependencies for the candlewick-visualizer runtime:

• cppzmq - C++ ZeroMQ bindings
• msgpack-cxx - MessagePack serialization

Python runtime dependencies: pyzmq msgspec

Video recording

• FFmpeg for support for recording videos from the rendered graphics. | conda install ffmpeg pkg-config | The following components are required:
  • libavformat - Container format handling
  • libavcodec - Video encoding/decoding
  • libswscale - Image scaling and format conversion

Development dependencies (tests, examples)

• GoogleTest for the tests | conda install gtest
• CLI11 for the examples and tests | conda install cli11
• With Pinocchio support: building the C++ examples requires example-robot-data. conda install -c conda-forge example-robot-data

Building Candlewick

For building the library, you will need CMake (version at least 3.26) and a C++20-compliant compiler. These can also be obtained through Conda.

In the directory where you have checked out the code, perform the following steps:

# 1. Create a CMake build directory
cmake -S . -B build/ \
  -DCMAKE_BUILD_TYPE=Release \
  -DBUILD_PINOCCHIO_VISUALIZER:BOOL=ON \  # For Pinocchio support
  -DBUILD_VISUALIZER_RUNTIME:BOOL=ON \  # Async visualizer runtime
  -DBUILD_PYTHON_INTERFACE:BOOL=ON \  # For Python bindings
  -DGENERATE_PYTHON_STUBS:BOOL=ON \  # Python binding type stubs
  -GNinja \ # or -G"Unix Makefiles" to use Make
  -DBUILD_TESTING=OFF \  # or ON not build the tests
  -DCMAKE_INSTALL_PREFIX=<your-install-prefix> \  # e.g. ~/.local/, or $CONDA_PREFIX
  <other-options...>
# 2. Move into it and build (generator-independent)
cd build/
cmake --build . -j<num-parallel-jobs>
# 3. Install
cmake --install .

A summary of build options

Build Option	Default	Description	Additional Dependencies	Requires
BUILD_PYTHON_INTERFACE	ON	Build Python bindings	eigenpy	-
BUILD_PINOCCHIO_VISUALIZER	ON	Enable Pinocchio robot visualization	pinocchio >= 3.5	-
BUILD_VISUALIZER_RUNTIME	OFF	Build candlewick-visualizer executable	cppzmq, msgpack-cxx	BUILD_PINOCCHIO_VISUALIZER=ON
BUILD_WITH_FFMPEG_SUPPORT	OFF	Enable video recording capabilities	FFmpeg	-
GENERATE_PYTHON_STUBS	OFF	Generate Python type stubs	(handled by cmake submodule)	BUILD_PYTHON_INTERFACE=ON
